Insulated Concrete Slab and Waffle-Pod Foundations Explained

An insulated concrete slab is a ground-floor foundation poured over a continuous layer of rigid under-slab insulation, with insulation also carried down the perimeter edge. That layer separates the warm slab from the cold ground beneath it and the cold air outside, so the floor keeps its heat inside the home rather than draining it away.

A plain concrete slab poured straight onto the ground is in constant thermal contact with the soil, which sits far below a comfortable room temperature for most of the year. Warmth from the home is drawn down and out, and the floor feels cold. Adding a continuous board of rigid insulation under the slab, and turning that insulation down around the edge, breaks that contact. The slab becomes part of the home’s warm, insulated envelope instead of a hole in it. The principle is the same one that makes the rest of the envelope work, and it pairs naturally with good underfloor insulation where a suspended floor is used instead. Which foundation is right, though, is never a matter of taste; it is set by the ground and confirmed by an engineer.

A waffle-pod raft is an engineered slab cast over a grid of lightweight polystyrene pods that sit on the ground. The concrete fills the ribs between and over the pods to form a stiff, ribbed raft that spreads the building’s load across its whole footprint, while the pods themselves add a layer of under-slab insulation as part of the system.

Because the raft is stiff and continuous, it can suit ground that would be awkward for a conventional footing, and the built-in pods give it an insulation head start. It is one option among several, not a default. Waffle-pod rafts are well matched to relatively flat, stable sites and are less appropriate on steep, filled or poorly drained ground, where a different foundation is sounder. The choice is a structural and geotechnical decision, informed by a proper read of the site, which is exactly what our guide on reading your building site works through. An engineer assesses the soil, slope, drainage and loads, then specifies the foundation that is both sound and efficient, rather than fitting the site to a favourite detail.

Insulating under the slab keeps heat in the floor, but insulating the edge is often the more important half of the job. An uninsulated slab edge is a continuous thermal bridge, a direct path around the entire outline of the house where the warm slab meets cold ground and outside air, and heat pours out along it.

That edge is easy to overlook because it is hidden, yet it does real damage. Heat lost along an uninsulated perimeter shows up as cold floors near the external walls, higher heating bills and, where warm indoor air meets a cold slab edge, the conditions for condensation. Insulating the perimeter breaks the bridge and lets the whole floor sit closer to room temperature. The table below sets three common approaches side by side, but remember that the right one is decided by the engineer for your ground, not chosen from a list.

Across all three, the perimeter detail is what separates a slab that holds heat from one that quietly loses it. BRANZ publishes guidance on detailing slab edges and under-slab insulation, and PHINZ sets out the continuous, bridge-free approach a high-performance home aims for.

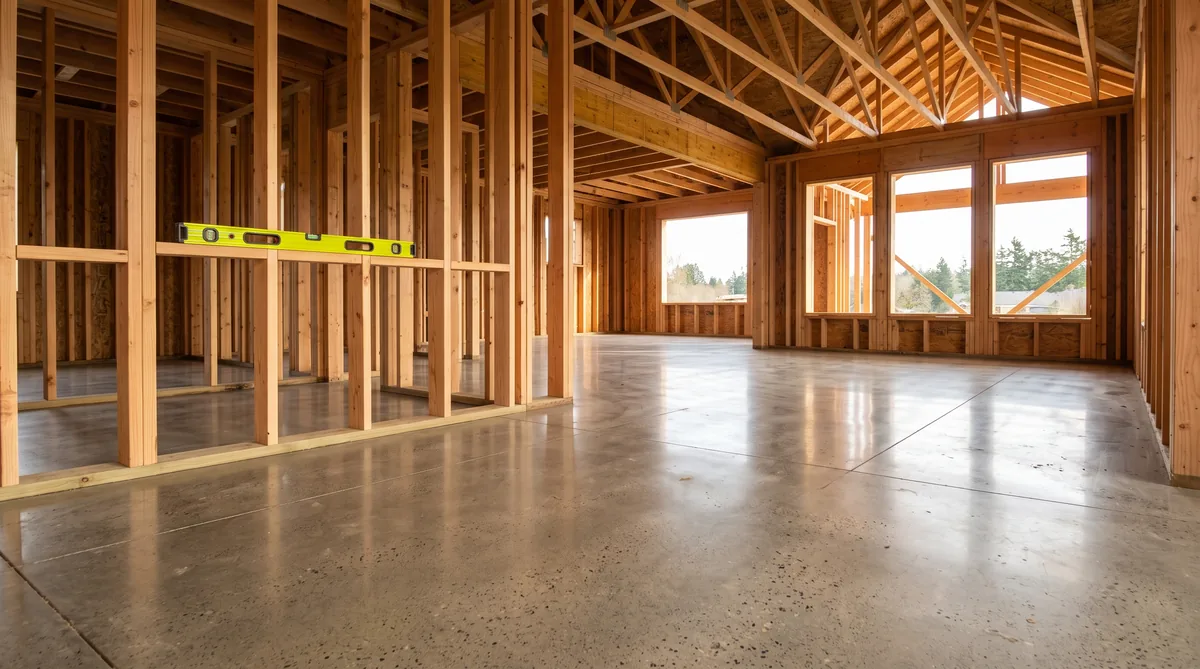

A well-insulated slab is useful thermal mass: it stores warmth from the winter sun falling through north-facing glass during the day and releases it slowly into the evening, steadying the indoor temperature and softening the swing between day and night. Uninsulated, that same concrete simply leaks its heat into the ground and works against you.

This is where the foundation ties directly to passive solar design. Winter sun striking the floor is absorbed by the slab and given back as the room cools, so a home with good orientation and the right amount of north glass stays comfortable for longer without the heating running. The effect only works when the mass is insulated from the ground; otherwise the soil pulls the stored warmth straight out. Getting the orientation and glazing right so the sun reaches the slab in winter but not in the heat of summer is the work covered in our guide on designing for the Nelson Tasman sun. Thermal mass is not a substitute for insulation or for a warm envelope; it is what a warm, insulated slab lets you use for free.

The slab is the base of one continuous insulated envelope. In a high-performance home the insulation runs unbroken from under the floor, up the walls and across the roof, with the airtight layer and glazing tied into it, so there is no weak point for heat to escape. The foundation is where that envelope starts, which is why it is designed at concept, not left to the site.

A continuous, bridge-free floor is one of the ideas behind the five Passive House principles, and it only holds together when the whole team designs it that way from the first sketch. Ground conditions, structure, insulation and passive solar all meet in the slab, so an energy-literate engineer belongs in the room early, alongside the architect. At Ecotectural we bring them together in an approach we call Around One Table, solving the hard questions on paper while changes are still cheap, rather than discovering them once the drawings are fixed or, worse, on site. The NZ Building Code is the legal floor the slab is checked against at building consent, and BRANZ and PHINZ are the reference points for the detailing that lifts it well above that minimum. You can see how we hold design and construction together on our design and build page.

An insulated concrete slab separates the warm floor from the cold ground and outside air with continuous under-slab and perimeter insulation, and a waffle-pod raft is one engineered way to achieve that on suitable ground. The edge is the detail that matters most, because an uninsulated slab edge is a major cold bridge and heat-loss path, and a well-insulated slab then becomes thermal mass that stores winter sun and steadies the temperature inside.

Which foundation is right is decided by the ground, through an engineer, so the single most useful move is to bring that thinking in at concept. Ecotectural has designed and built architectural homes across Nelson Tasman since 2006, engineering the envelope from the first concept through Around One Table and pricing every build openly under Built in the Open, with a 10 percent contingency as standard. If you are planning a warm, comfortable home, the best first step is to arrange a consultation before the foundation is set on the drawings.
